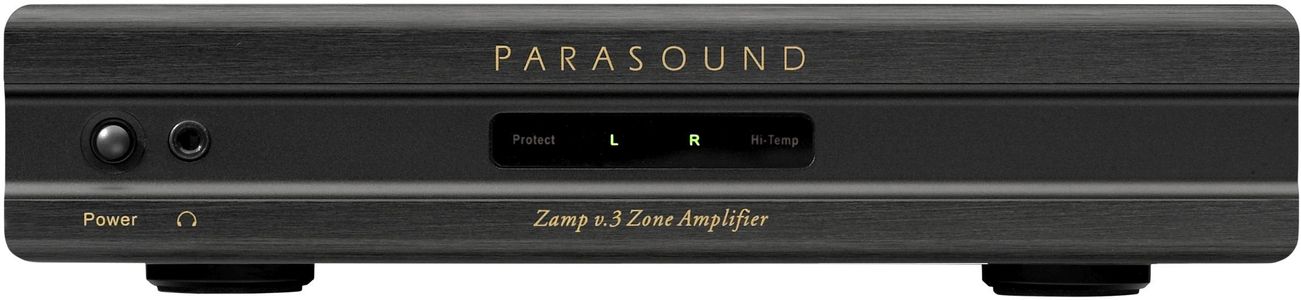

Parasound® 2 Channel Zone Amplifier

Product Overview

45 watts per channel into 8 O

60 watts per channel into 4 O

90 watts bridged into 8 O mono

Fully discrete circuitry with Toroid power transformer

Low heat design

Headphone jack

Indicators for AC present and channel operating status

Automatic on/off by 9 - 12 V trigger

Gold-plated RCA input jacks and looping line output jacks

5-way speaker terminals

Compact chassis; 1 rack space high

Continuous power output

45 watts RMS x 2, 20 Hz - 20 kHz, 8 O, both channels driven

60 watts RMS x 2, 20 Hz - 20 kHz, 4 O, both channels driven

90 watts RMS x 1, 20 Hz - 20 kHz, 8 O, minimum impedance

Current capacity

12 amperes peak per channel

Frequency response

5 Hz - 100 kHz, +0/-3 dB

Total harmonic distortion

< 0.07 % full power

< 0.02 % typical levels

IM distortion

< 0.05 %

Dynamic headroom

1.5 dB

Inter-channel crosstalk

80 dB at 1 kHz; 60 dB at 20 kHz

Input Impedance

33 k O

Input Sensitivity

600 mV; 1.5 V for full output

S/N Ratio

116 dB, input shorted, IHF A weighted

Dimension

Height without feet: 1.75"
